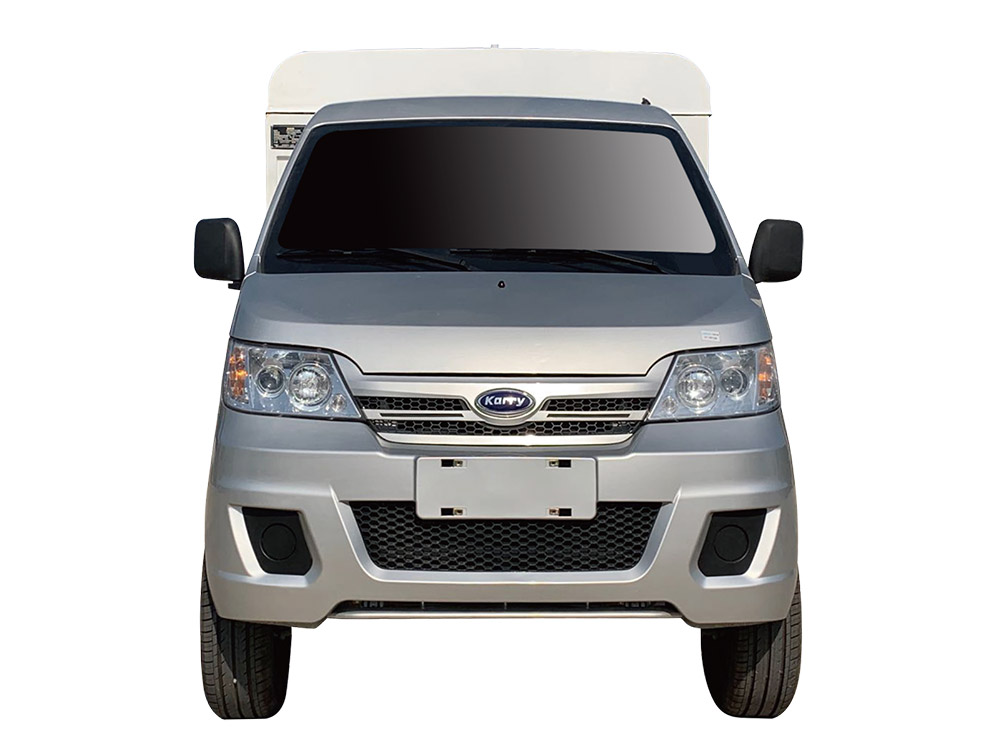

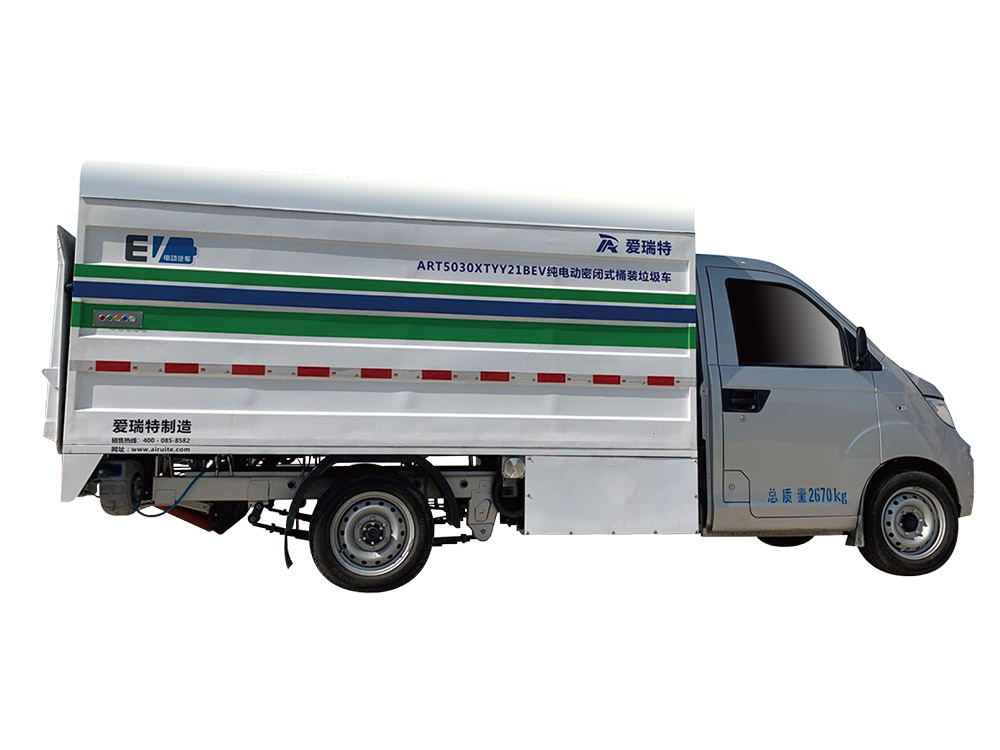

ART5030XTYY21BEV pure electric garbage truck is mainly used for the collection and transportation of classified garbage cans in residential areas, towns, commercial areas, tourist attractions, schools and other places. It is pure electric operation, low cost and zero emission.

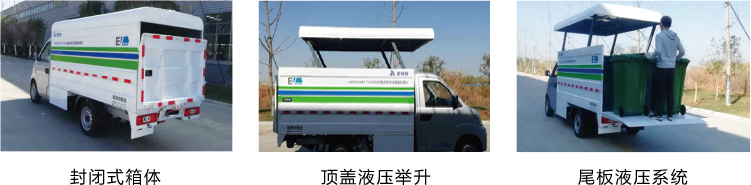

◆Box: it adopts sealed tipping dustbin structure, the top cover is equipped with double cylinder hydraulic lifting device, high-quality high-strength steel plate, electrophoresis antirust treatment and corrosion resistance;

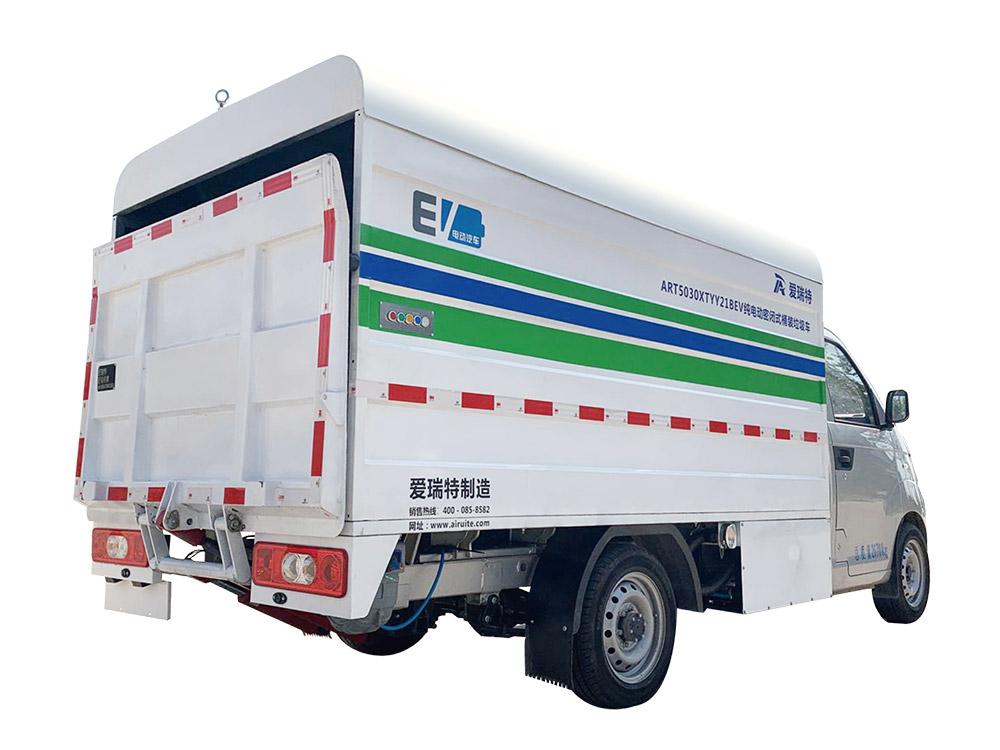

◆Tail plate device: double cylinder hydraulic lifting tail plate, which can be controlled by button or wireless remote control;
◆Clean water system: the carriage is additionally equipped with a clean water system, which is convenient for spraying and cleaning operation tools and external dirt of the carriage.
| Parameters | ART5030XTYY21BEV Pure electric garbage truck |
| Chassis model / brand | SQR1032BEVH08-E/karry |
| Total mass | 2670kg |
| curb weight | 1980kg |
| wheelbase | 3050mm |
| Battery brand | GuoXuan hi tech (LiFePO4) |
| Battery capacity | 41.34kWh |
| Maximum speed | 105km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 6m |
| Number of barrels | 8個（240L Trash） |
| Tailboard cycle time | ≤20s |
| Tailboard lifting capacity | 500kg |
| Overall dimension (L × w × h) | 5255×1670×2220mm |
